COMBINED DRAWING MACHINE

COMBINED DRAWING MACHINE

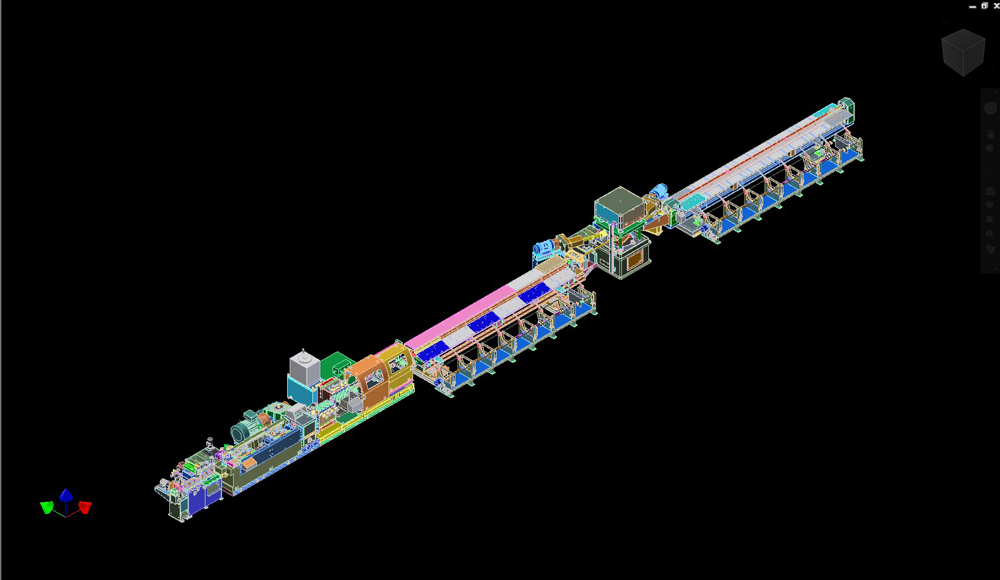

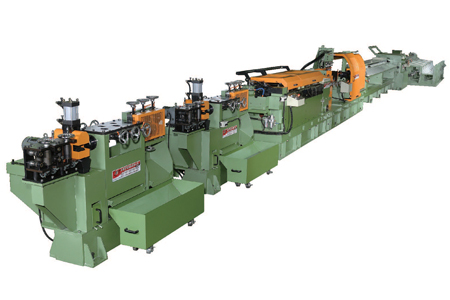

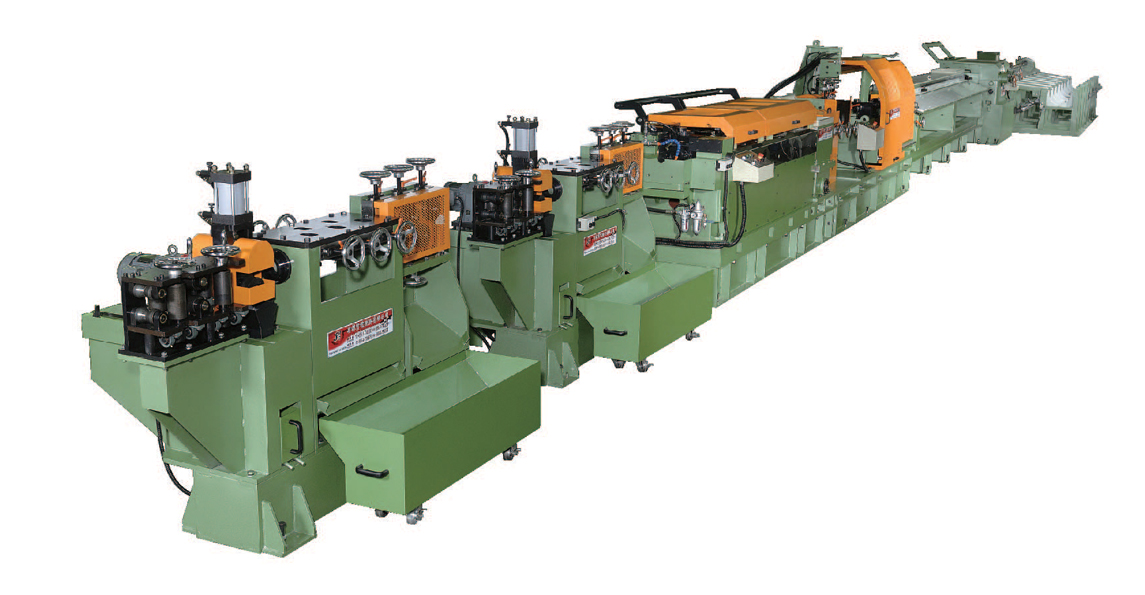

Our combined drawing machine is complex combination, and the production will be high - efficiency and guarantee to achieve best quality. Except the combined drawing machine, we can offer related device that can match the production line. For example, Coil Opener, Chamfering Machine, Push Pointer, Shot Blasting Machine, Straightening and Polishing Machine, Swaging Machine and Pointing Machine.

  • Type SH - 0 SH - 1 SH - 1B SH - 1C SH - 2 SH - 3 SH - 4
    Round ( mm ) ∮3 - ∮ 8 ∮5 - ∮ 13 ∮5 - ∮ 16 ∮6 - ∮ 20 ∮10 - ∮ 25 ∮16 - ∮ 36 ∮30 - ∮ 60
    Hexagon ( mm ) H 3 - H 7 H 5.5 - H 11 H 5.5 - H 14 H6 - H18 H 10 - H 22 H 16 - H 32 H 30 - H 50
    Square ( mm ) S 3 - S 6 S 5.5 - S 9 S 5.5 - S 14 S 6 - S 18 S 10 - S 22 S 16 - S 30 S 30 - S 45
    Max tension ( KG ) 2000 4000 5000 10000 10000 15000 40000
    Drawing rate ( M ) 80 70 70 60 60 60 25
    Braking moment
    for shearing part
    ( N - M )    		 142 142 142 142 525 525
    Total power ( KW ) 80 112 145 240 310
    Total weight ( T ) 15 19 21 24 34 61 78
    Weight of steel ( T ) 3.0 ( Max. )
    Straightness of
    finished products
    ( mm / M )    		 0.1 < - 0.8 <
    Cutting length 2 - 6 M
