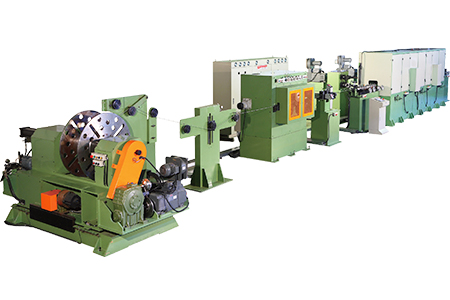

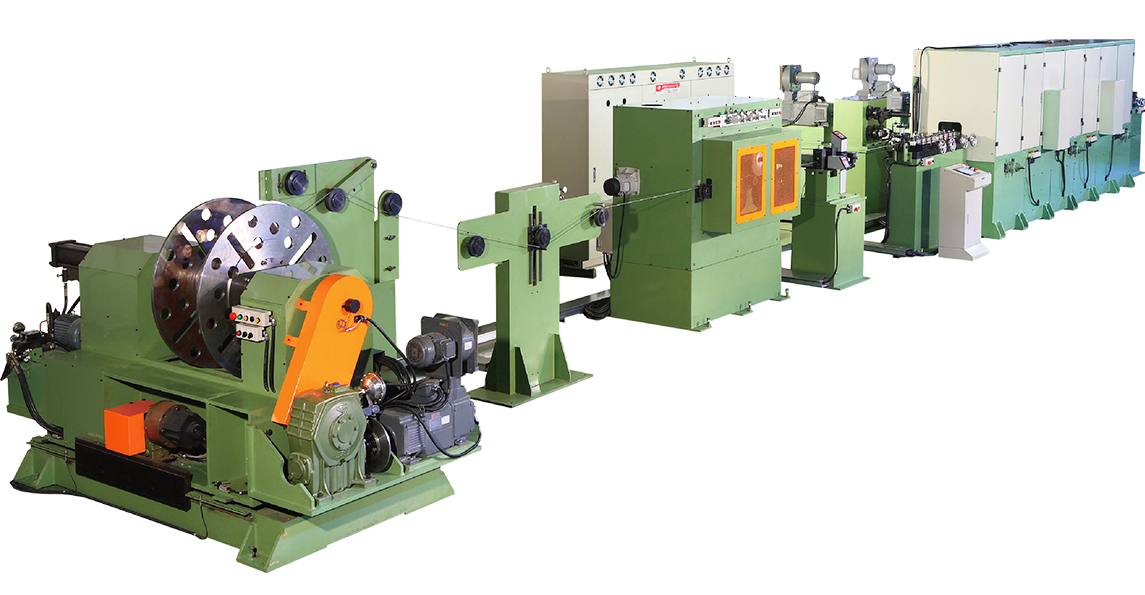

FLAT ROLLING MILL MACHINE

The function of Flat Rolling Mill is including the flat rolling roller, dimension measure, polishing and coiler. It can make the coil material to process the flat material. At the same time, it also can be polished, coiled alignment on line or cut off to bars.

  • Specification Max. Min.
    Machining Diameter 14 mm 4 mm
    Machining Thickness 10 mm 1 mm
    Machining Width 20 mm 6 mm
    Machining Speed 100 M / min ( Max. )
    Weight Of Coil ( Max. ) 3000 kg
    Weight Of Finished Porducts ( Max. ) 1000 kg
    Total Power 265kw
    Total Weight ( T ) 34 Ton
